Package Includes:

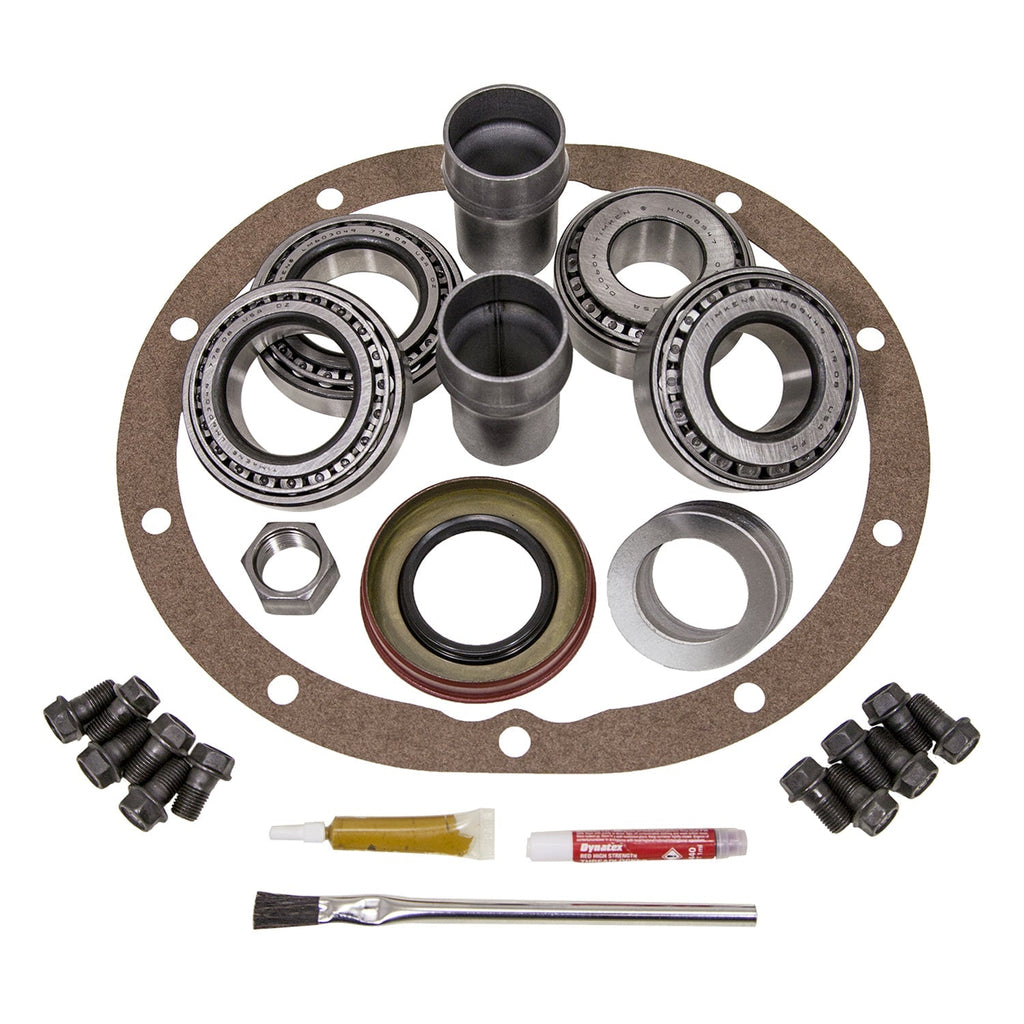

(1) Rear Master Bearing Install Kit

- Our Master overhaul kits come with everything you need to replace, modify, or rebuild your differential. This will allow you to get the job done quicker, and cheaper at the end of the day. Rigid Axle master bearing install kits include:

• Both (Inner & Outer) Pinion Bearings and Races
• Carrier Bearings and Races
• Pinion and Carrier Shims
• Pinion Seal
• Pinion Nut
• Ring Gear Bolts
• Crush Sleeve
• Complete Shims
• Threadlocker
• RTV Sealant or Cover Gasket

- Rigid Axle is proud to offer our customers a full line of differential, transfer case, and transmission parts. We specialize in complete rebuild kits for domestic cars and trucks. Give us a call with your year, make, and model and we'll build you a custom kit for your build!

• Chevrolet / Chevy Nomad (1955-1962)
• Chevrolet / Chevy K10/ K1500 1/2 Ton (4WD) (1960-1964)
• Chevrolet / Chevy Suburban 1/2 Ton (1960-1964)
• Chevrolet / Chevy Biscayne (1958-1964)
• Chevrolet / Chevy C10 1/2 Ton (2WD) (1960-1964)
• Chevrolet / Chevy Bel Air (1955-1964)
• Chevrolet / Chevy Nova (1962-1964)
• Chevrolet / Chevy Impala (1957-1964)
• Chevrolet / Chevy El Camino (1959-1964)
• Chevrolet / Chevy Corvette (1956-1962)
• Chevrolet / Chevy Apache (1955-1960)
• GMC K15/ K1500 1/2 Ton (4WD) (1960-1964)
• GMC C15/ C1500 1/2 Ton (2WD) (1960-1964)
• GMC Suburban 1/2 Ton (1960-1964)
• GMC G15/ G1500 1/2 Ton (1960-1964)

• Differential Model: GM 8.2"
• Cover Bolt Quantity: 10
• Carrier Breaks: 3.70 / 4.11
• Carrier/Axle Spline Count: 17
• Ring Gear Diameter: 8.2"
• Ring Gear Rotation: Standard
• Ring Gear Material: 8620 Steel
• Ring Gear Bolt Quantity: 10
• Ring Gear Bolt Size: 3/8" X 24 RH
• Pinion Diameter: 1.313"
• Pinion Spline: 17

- Cross Reference: 314K, 83-1052-1, K35-2081, R8.4RMKT, XL-1052-1, ZK GM55CHEVY.
