Package Includes:

(1) Differential Master Bearing Install Kit

- *Note: The Chrysler 8.25" has a carrier break at 2.71 & numerically higher. That means if you have a lower ratio, and would like to run a 3.21 ratio, you will need to buy a new carrier. Contact support if you need help figuring out what carrier you have.

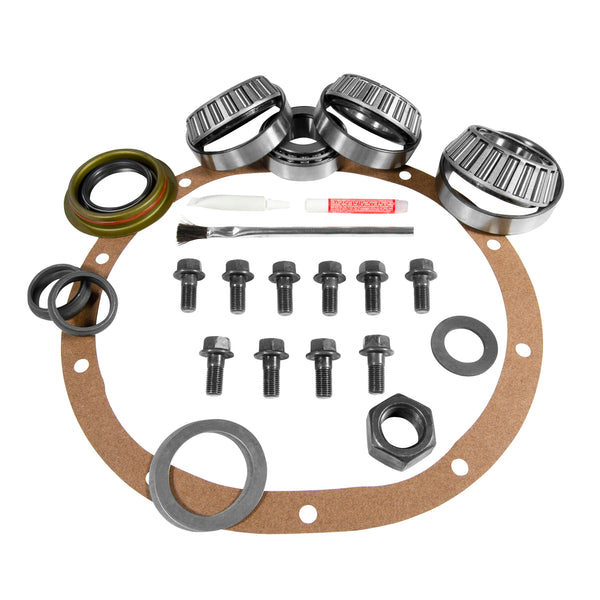

- Our Master overhaul kits come with everything you need to replace, modify, or rebuild your differential. This will allow you to get the job done quicker, and cheaper at the end of the day. Rigid Axle master bearing install kits include:

• Both (Inner & Outer) Pinion Bearings and Races
• Carrier Bearings and Races
• Pinion and Carrier Shims
• Pinion Seal
• Pinion Nut
• Ring Gear Bolts
• Crush Sleeve
• Complete Shims
• Threadlocker
• RTV Sealant or Cover Gasket

- Rigid Axle is proud to offer our customers a full line of differential, transfer case, and transmission parts. We specialize in complete rebuild kits for domestic cars and trucks. Give us a call with your year, make, and model and we'll build you a custom kit for your build!

• Chrysler New Yorker (1968-1975)
• Chrysler Imperial (1971-1975)
• Dodge B100 Dodge Van 1/2 Ton (1970-1975)
• Dodge Monaco (1966-1975)
• Dodge Ram Van 2500 3/4 Ton (1971-1975)
• Dodge Coronet (1963-1975)
• Dodge Ram Van 1500 1/2 Ton (1970-1975)
• Dodge D200 2wd 3/4 Ton (1970-1975)
• Dodge Dart (1966-1975)
• Dodge Charger (1968-1975)
• Dodge Polara (1960-1974)
• Dodge W100 1/2 Ton 4x4 (1970-1975)
• Dodge A100 1/2 Ton (1964-1971)
• Dodge D100 2wd 1/2 Ton (1970-1975)
• Plymouth Duster (1970-1975)
• Plymouth Belvedere (1968-1970)
• Plymouth GTX (1968-1971)
• Plymouth Barracuda (1964-1974)
• Plymouth Satellite (1965-1974)
• Plymouth Road Runner (1968-1970)
• Plymouth Fury (1966-1975)

• Differential Model: Chrysler 8.25"
• Cover Bolt Quantity: 10 or 12 (C213RE)
• Carrier Breaks: 2.71 & Numerically Higher
• Carrier/Axle Spline Count: 27 or 29
• Ring Gear Bolt Quantity: 10
• Ring Gear Diameter: 8.25"
• Ring Gear Rotation: Standard
• Ring Gear Material: 8620 Steel
• Ring Gear Bolt Size: 3/8" x 24 LH ('76-'04), 10mm x 1.0 ('05-'13)
• Pinion Diameter: 1.626"
• Pinion Spline: 27

- Cross Reference: YK C8.25-A, R8.25REMK.
