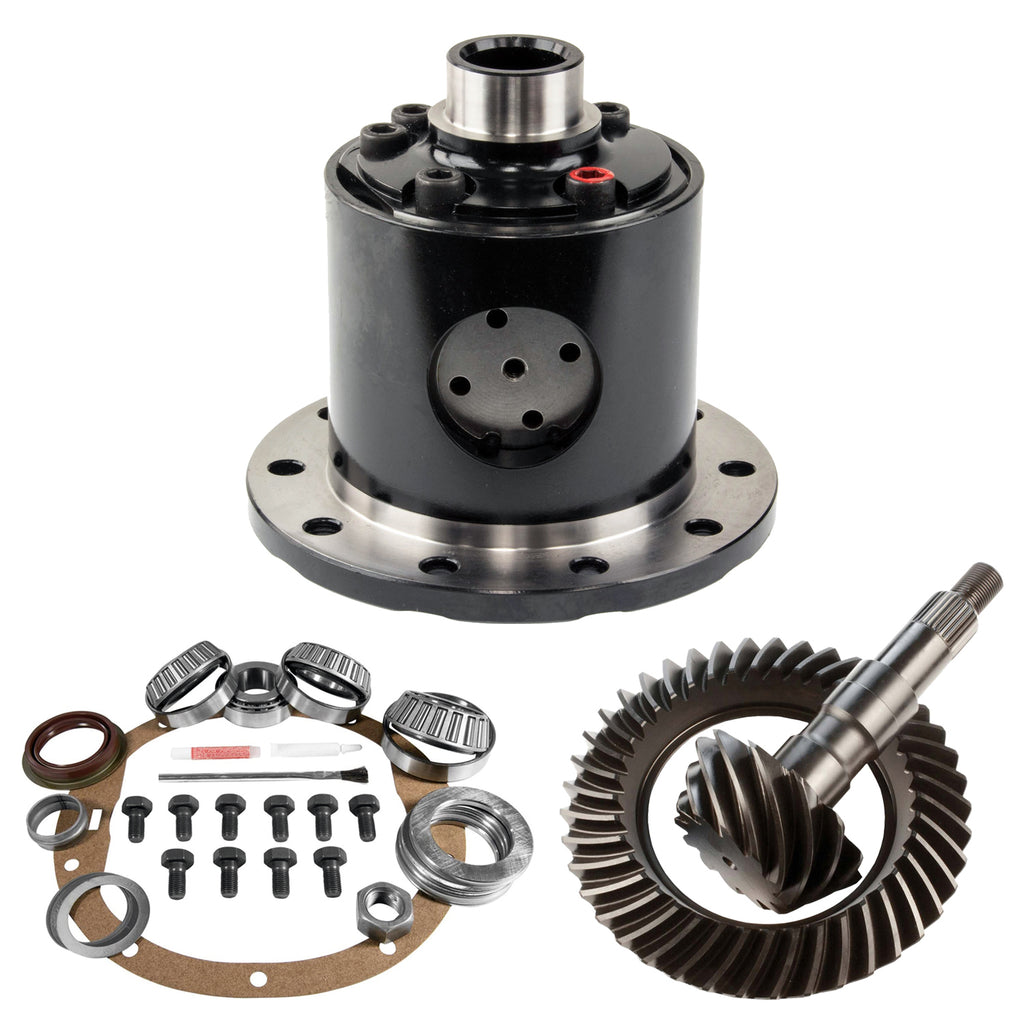

Package Includes:

(1) Rigid Axle "HELL" Positraction Carrier
(1) Ring and Pinion Gear Set (Choose Ratio Above)
(1) Differential Master Install Kit

- Our Rigid Axle, Detroit Truetrac style, "HELL" limited-slip positraction unit uses 3x2 spiral gears for progressive and variable traction. This unit acts like a standard open carrier under normal driving conditions making it unobtrusive. Once a tire looses traction, or the terrain changes, the helical cut gears mesh together transferring torque to the high traction tire. Once traction on both sides resumes, the carrier goes back to normal operation. The carrier case is forged steel for strength and reliability. Since this unit does not have clutches and steels, it is completely maintenance free! Rigid Axle's helical-gear style limited slip posi is the perfect choice for daily drivers, weekend warriors, towing, basic off-road use, and street/strip applications. See below for some key features and tech specifications:

• Fully Machined, Forged Steel Case
• 3x2 Spiral Gears for Progressive and Variable Traction
• 100% Maintenance Free
• 2 Year / 100,000 Mile Warranty
• Uses LM102949 & LM102911 Bearings & Races for the 8.5" Housing (2.891" Race OD) or LM603049 & LM603012 for the GM 8.6" Housing (3.062" Race OD)
• Non-Synthetic GL-5 Gear Oil Recommended
• Synthetic Oils and Friction Modifier Not Recommended
• Does not fit 1999+ with drum brakes

- Rigid Axle's OE Dry 2-Cut and aftermarket ring and pinion gear sets are made from heat treated 8620 steel. Our OE Dry 2-Cut ring and pinions are made using a two-cut, face hobbed manufacturing process. The advantage to running a 2-Cut gear is how quiet they operate. If you want a guaranteed quiet gear, upgrade to our Dry 2-Cut gear set! When these gears are set up properly and rolled with gear marking compound, the pattern will show up slanted. Our aftermarket gear set is made using a five-cut, face milled manufacturing process. Once set up correctly, this will give a square contact pattern on the drive and coast side of each tooth. We are proud of our ring and pinion lines, and you will be too!

- Remember to properly break in your new gear set! Click here for instructions!

- Our Master overhaul kits come with everything you need to replace, modify, or rebuild your differential. This will allow you to get the job done quicker, and cheaper at the end of the day. Rigid Axle master bearing install kits include:

• Both (Inner & Outer) High Quality Koyo Pinion Bearings and Races
• High Quality Koyo Carrier Bearings and Races
• Pinion and Carrier Shims
• Pinion Seal
• Pinion Nut
• Ring Gear Bolts
• Crush Sleeve and Preload Shims
• Loctite
• RTV Sealant or Cover Gasket

- Rigid Axle is proud to offer our customers a full line of differential, transfer case, and transmission parts. We specialize in complete rebuild kits for domestic cars and trucks. Give us a call with your year, make, and model and we'll build you a custom kit for your build!

• Buick Rainier (2004 - 2007)
• Cadillac Escalade (1999 - 2008)
• Chevrolet / Chevy Avalanche 1500 (2002 - 2008)
• Chevrolet / Chevy C1500 1/2 Ton (2WD) (1999 - 1999)
• Chevrolet / Chevy C2500 3/4 Ton (2WD) (1999 - 2000)
• Chevrolet / Chevy Colorado (2004 - 2008)
• Chevrolet / Chevy Express Van 1500 1/2 Ton (2003 - 2008)
• Chevrolet / Chevy K10/ K1500 1/2 Ton (4WD) (1999 - 1999)
• Chevrolet / Chevy S10 Blazer / Pickup (1999 - 2005)
• Chevrolet / Chevy Silverado 1500 1/2 Ton (1999 - 2008)
• Chevrolet / Chevy SSR (2003 - 2006)
• Chevrolet / Chevy Suburban 1/2 Ton (1999 - 2008)
• Chevrolet / Chevy Tahoe 1500 1/2 Ton (1999 - 2008)
• Chevrolet / Chevy Trailblazer (1999 - 2008)
• GMC C15/ C1500 1/2 Ton (2WD) (1999 - 1999)
• GMC C25/ C2500 3/4 Ton (2WD) (1999 - 2000)
• GMC Canyon (2004 - 2008)
• GMC Envoy (2002 - 2008)
• GMC K15/ K1500 1/2 Ton (4WD) (1999 - 1999)
• GMC S15 Jimmy / Pickup (1999 - 2005)
• GMC Savana 1500 1/2 Ton (1999 - 2008)
• GMC Sierra 1500 1/2 Ton (1999 - 2008)
• GMC Sierra Denali (1999 - 2008)
• GMC Sonoma (1999 - 2004)
• GMC Suburban 1/2 Ton (1999 - 2000)
• GMC Yukon 1500 1/2 Ton (1999 - 2008)
• GMC Yukon XL 1500 1/2 Ton (2000 - 2008)
• Hummer H3 (2005 - 2008)
• Isuzu Ascender (2003 - 2008)
• Saab 9-7x (2005 - 2008)

• Cover Bolt Quantity: 10
• Differential Model: GM 8.6"
• Carrier Type: Detroit Truetrac Style
• Carrier Spline Count: 30
• Pinion Shaft Diameter: 1.626 Inch
• Pinion Spline Count: 30
• Ring Gear Bolt Quantity: 10
• Ring Gear Diameter: 8.5 Inch
• Ring Gear Material: Heat Treated 8620 Steel
• Ring Gear Rotation: Standard
