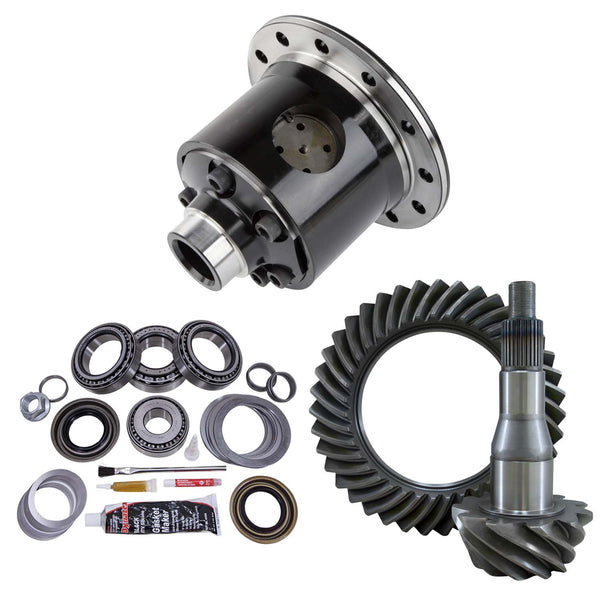

Package Includes:

(1) Rigid Axle "HELL" Positraction Carrier
(1) Ring and Pinion Gear Set (Choose Ratio Above)
(1) Differential Master Install Kit

- Our Rigid Axle, Detroit Truetrac style, "HELL" limited-slip positraction unit uses 3x2 spiral gears for progressive and variable traction. This unit acts like a standard open carrier under normal driving conditions making it unobtrusive. Once a tire looses traction, or the terrain changes, the helical cut gears mesh together transferring torque to the high traction tire. Once traction on both sides resumes, the carrier goes back to normal operation. The carrier case is forged steel for strength and reliability. Since this unit does not have clutches and steels, it is completely maintenance free! Rigid Axle's helical-gear style limited slip posi is the perfect choice for daily drivers, weekend warriors, towing, basic off-road use, and street/strip applications. See below for some key features and tech specifications:

• Fits All Gear Ratios
• Fits Ford 9.75" with 34 Spline Axles
• Fully Machined, Forged Steel Case
• 3x2 Spiral Gears for Progressive and Variable Traction
• 100% Maintenance Free
• 2 Year / 100,000 Mile Warranty
• Non-Synthetic GL-5 Gear Oil Recommended
• Synthetic Oils and Friction Modifier Not Recommended

- Rigid Axle's aftermarket ring and pinion gear sets are made from heat treated 8620 steel. Our aftermarket gear set is made using a five-cut, face milled manufacturing process. Once set up correctly, this will give a square contact pattern on the drive and coast side of each tooth. We are proud of our ring and pinion lines, and you will be too!

- Remember to properly break in your new gear set! Click here for instructions!

- Our Master overhaul kits come with everything you need to replace, modify, or rebuild your differential. This will allow you to get the job done quicker, and cheaper at the end of the day. Rigid Axle master bearing install kits include:

• Both (Inner & Outer) Pinion Bearings and Races
• Carrier Bearings and Races
• Pinion and Carrier Shims
• Pinion Seal
• Pinion Nut
• Ring Gear Bolts
• Crush Sleeve
• Complete Shims
• Threadlocker
• RTV Sealant or Cover Gasket

- Rigid Axle is proud to offer our customers a full line of differential, transfer case, and transmission parts. We specialize in complete rebuild kits for domestic cars and trucks. Give us a call with your year, make, and model and we'll build you a custom kit for your build!

• Ford Expedition (2000-2002)
• Ford F-150 1/2 Ton (2000-2010)
• Ford E-150 1/2 Ton (2000-2010)
• Ford E-250 3/4 Ton (2000-2002)
• Ford F-150 Raptor Edition (2009-2010)
• Lincoln Mark LT (2006-2008)
• Lincoln Navigator (2000-2005)

• Differential Model: Ford 9.75"
• Carrier Breaks: None
• Cover Bolt Quantity: 12 Bolt
• Ring Gear Diameter: 9.75 Inch
• Ring Gear Bolt Quantity: 12
• Ring Gear Material: 8620 Steel
• Ring Gear Rotation: Standard
• Pinion Diameter: 1.970 Inch
• Pinion Spline Count: 31
• Axle Spline Count: 34
