2003-2013 Chrysler 10.5" Rear - Ring & Pinion Gear Set
C10.5-373-RA

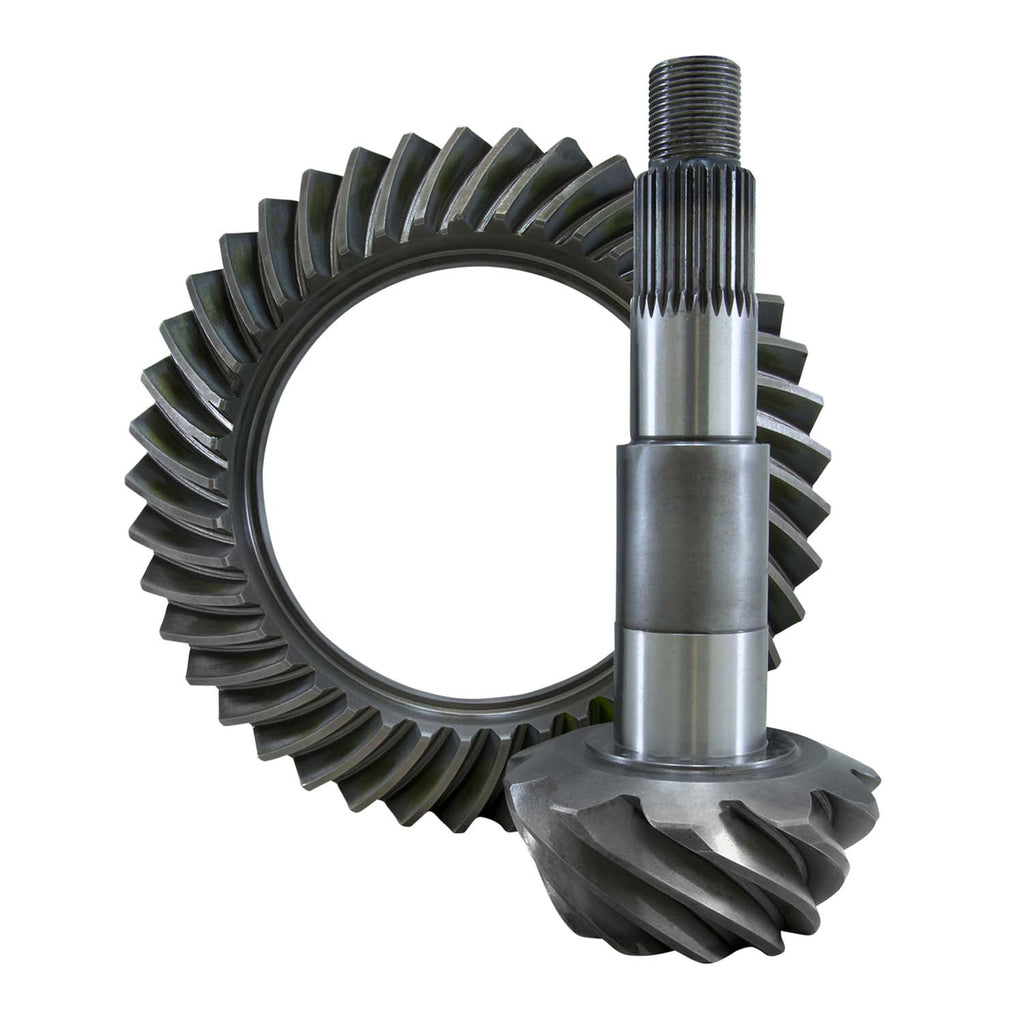

Ring & Pinion Gear Set
Rigid Axle
Chrysler 10.5" - Ring & Pinion
Description
Package Includes:
(1) Ring and Pinion Gear Set (Choose Ratio Above)
- Rigid Axle's aftermarket ring and pinion gear sets are made from heat treated 8620 steel. Our aftermarket gear set is made using a five-cut, face milled manufacturing process. Once set up correctly, this will give a square contact pattern on the drive and coast side of each tooth. We are proud of our ring and pinion lines, and you will be too!
- Remember to properly break in your new gear set! Click here for instructions!
- Rigid Axle is proud to offer our customers a full line of differential, transfer case, and transmission parts. We specialize in complete rebuild kits for domestic cars and trucks. Give us a call with your year, make, and model and we'll build you a custom kit for your build!
Applications
- Dodge Ram 2500 3/4 Ton (2003-2013)
- Dodge Ram 1500 1/2 Ton (2006-2013)
- Dodge Ram Van 2500 3/4 Ton (2003-2003)
- Dodge Power Wagon (2005-2013)
Chrysler 10.5" Specifics
- Differential Model: Chrysler 10.5"
- Cover Bolt Quantity: 14
- Carrier Breaks: None
- Carrier/Axle Spline Count: 30
- Ring Gear Bolt Quantity: 12
- Ring Gear Diameter: 10.5"
- Ring Gear Rotation: Standard
- Ring Gear Material: 8620 Steel
- Ring Gear Bolt Size: 14mm x 1.0
- Pinion Diameter: 1.75"
- Pinion Spline: 30
