Package Includes:

(1) Mini Spool (Choose Axle Spline Count Above)

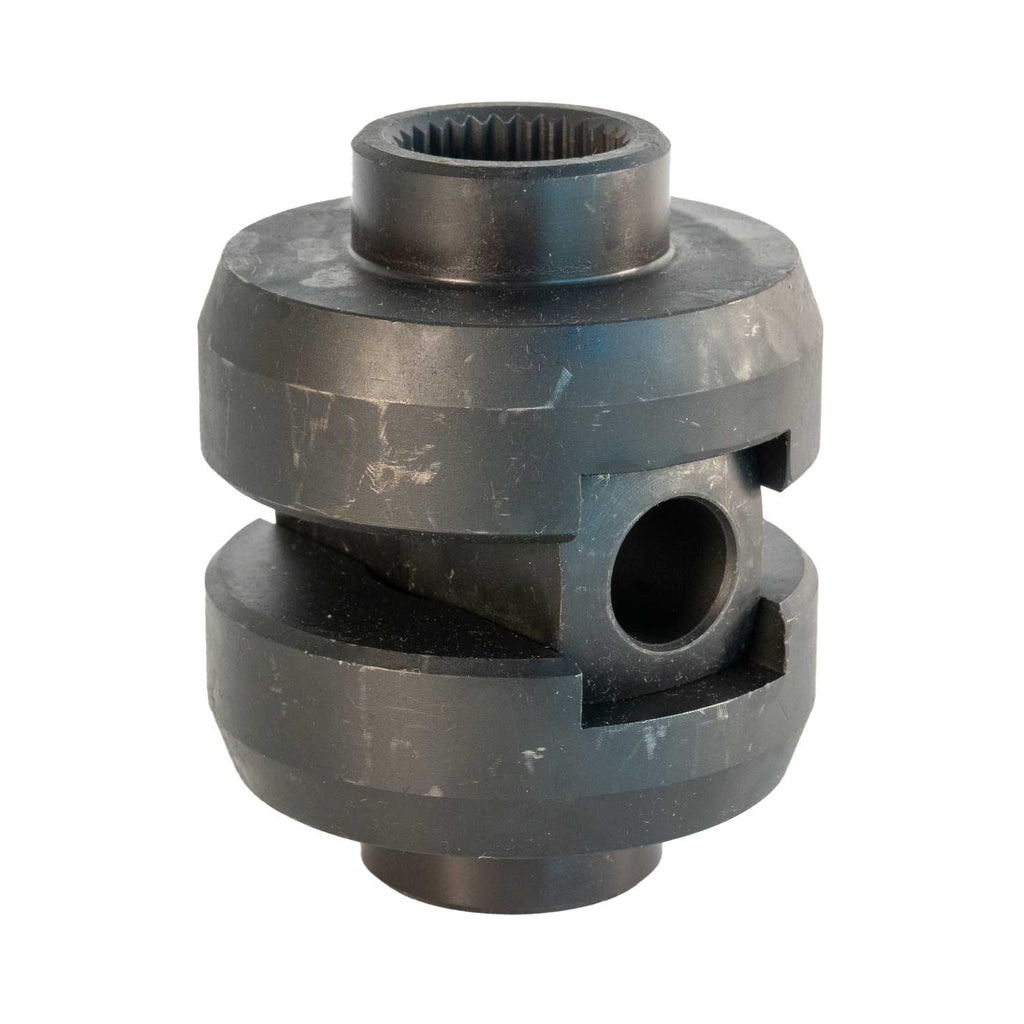

- Our GM 8.5" 10 Bolt Mini Spool fits early model GM 8.5" 10 Bolt front and rear ends. You can choose between 28 or 30 spline applications above. This mini spool replaces the spider gears inside your stock open style carrier. After assembly, power will be distributed to both tires 100% of the time, giving you a true locking/locked differential. This mini spool only fits open style carriers, not positraction carriers, and does not fit 1999-Up GM 8.6" applications. Check out our GM 8.6" conversion kit which includes a new carrier, mini spool, cross shaft, and cross pin!

- Rigid Axle is proud to offer our customers a full line of differential, transfer case, and transmission parts. We specialize in complete rebuild kits for domestic cars and trucks. Give us a call with your year, make, and model and we'll build you a custom kit for your build!

• Buick Apollo (1973 - 1975)
• Buick Electra (1971 - 1989)
• Buick Regal (1973 - 1987)
• Buick Riviera (1975 - 1978)
• Buick Skylark (1970 - 1972)
• Cadillac Escalade (1999 - 2000)
• Chevrolet / Chevy Bel Air (1970 - 1975)
• Chevrolet / Chevy Blazer (1979 - 1994)
• Chevrolet / Chevy C10 1/2 Ton (2WD) (1979 - 1987)
• Chevrolet / Chevy C1500 1/2 Ton (2WD) (1988 - 1990)
• Chevrolet / Chevy C2500 3/4 Ton (2WD) (1989 - 2000)
• Chevrolet / Chevy Camaro (1970 - 1981)
• Chevrolet / Chevy Caprice (1970 - 1996)
• Chevrolet / Chevy Chevelle/ Malibu (1973 - 1973)
• Chevrolet / Chevy El Camino (1971 - 1976)
• Chevrolet / Chevy Express Van 1500 1/2 Ton (1996 - 2003)
• Chevrolet / Chevy G10 1/2 Ton (1979 - 1989)
• Chevrolet / Chevy G20 3/4 Ton (1975 - 1989)
• Chevrolet / Chevy Impala (1971 - 1988)
• Chevrolet / Chevy K10/ K1500 1/2 Ton (4WD) (1979 - 1988)
• Chevrolet / Chevy K5 Blazer (4WD) (1979 - 1991)
• Chevrolet / Chevy Malibu (1973 - 1983)
• Chevrolet / Chevy Monte Carlo (1973 - 1978)
• Chevrolet / Chevy Nova (1970 - 1979)
• Chevrolet / Chevy S10 Blazer / Pickup (1994 - 2000)
• Chevrolet / Chevy Suburban 1/2 Ton (1979 - 1991)
• Chevrolet / Chevy Tahoe 1500 1/2 Ton (1995 - 1998)
• GMC C15/ C1500 1/2 Ton (2WD) (1979 - 1990)
• GMC C25/ C2500 3/4 Ton (2WD) (1997 - 2000)
• GMC G15/ G1500 1/2 Ton (1979 - 1988)
• GMC G25/ G2500 3/4 Ton (1978 - 1988)
• GMC K15/ K1500 1/2 Ton (4WD) (1979 - 1988)
• GMC S15 Jimmy / Pickup (1994 - 2000)
• GMC Savana 1500 1/2 Ton (1996 - 2003)
• GMC Savana 2500 3/4 Ton (1996 - 1998)
• GMC Sonoma (1994 - 1998)
• GMC Suburban 1/2 Ton (1979 - 1991)
• GMC Typhoon (1992 - 1993)
• GMC Yukon 1500 1/2 Ton (1992 - 2000)
• Oldsmobile Cutlass (1970 - 1977)
• Oldsmobile Omega (1973 - 1979)
• Plymouth Phoenix (1978 - 1979)
• Pontiac Bonneville (1970 - 1986)
• Pontiac Catalina (1970 - 1981)
• Pontiac Firebird (1970 - 1981)
• Pontiac Grand Prix (1971 - 1987)
• Pontiac GTO (1970 - 1977)
• Pontiac LeMans (1971 - 1983)
• Pontiac Trans Am (1970 - 1981)
• Pontiac Ventura (1976 - 1977)

• Cover Bolt Quantity: 10
• Differential Model: GM 8.5"
• Carrier Spline Count: 28 or 30
• Pinion Shaft Diameter: 1.626 Inch
• Pinion Spline Count: 30
• Ring Gear Bolt Quantity: 10
• Ring Gear Diameter: 8.5 Inch
